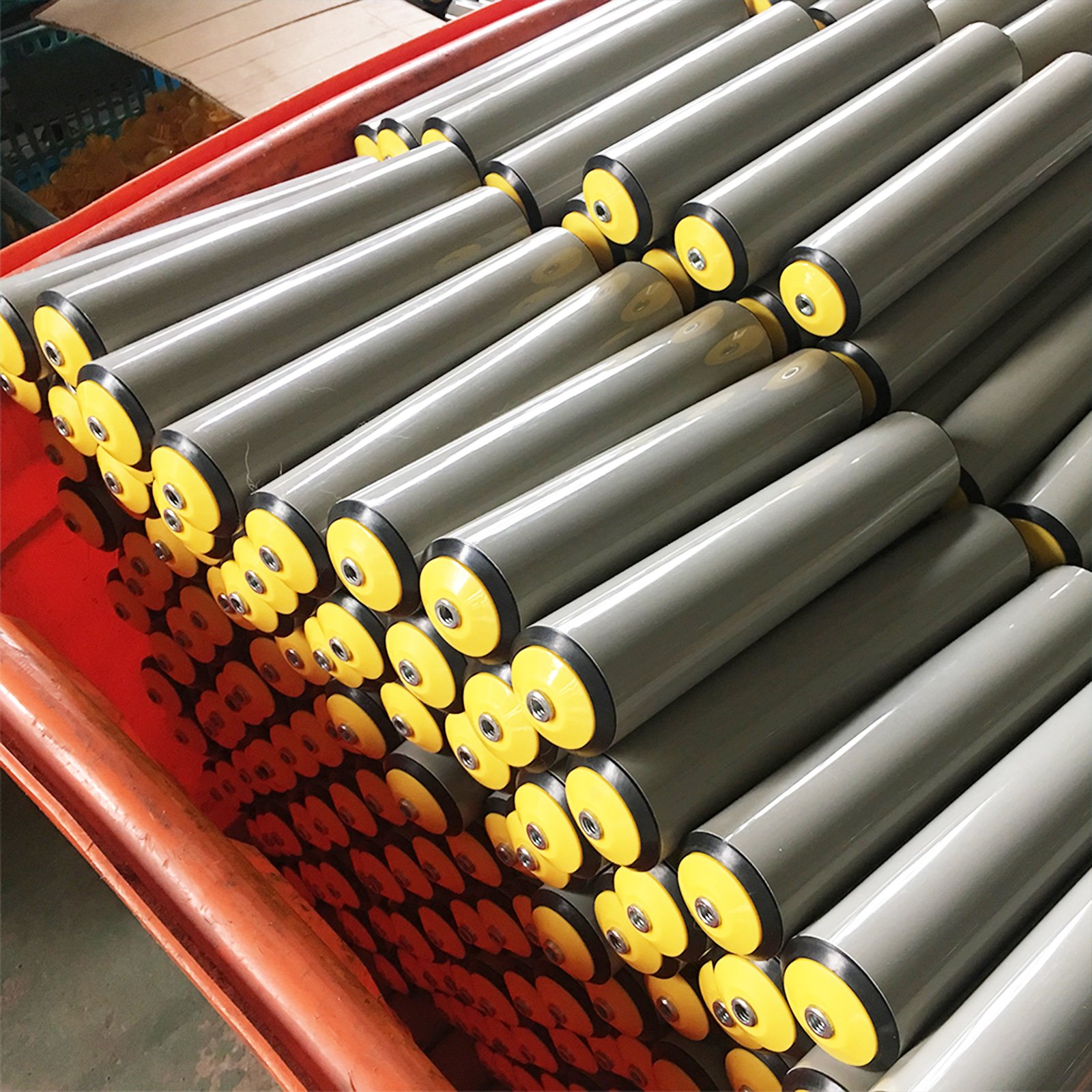

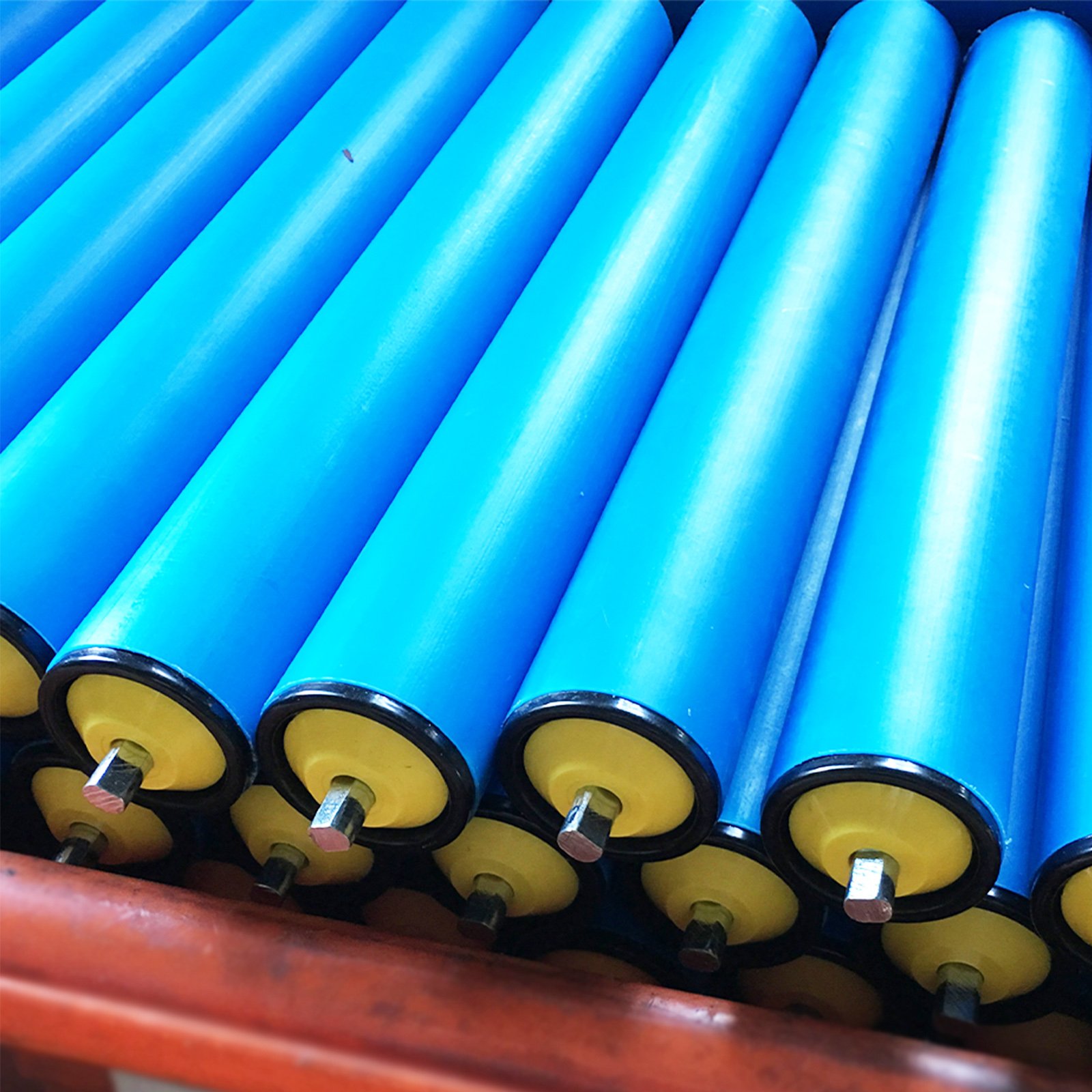

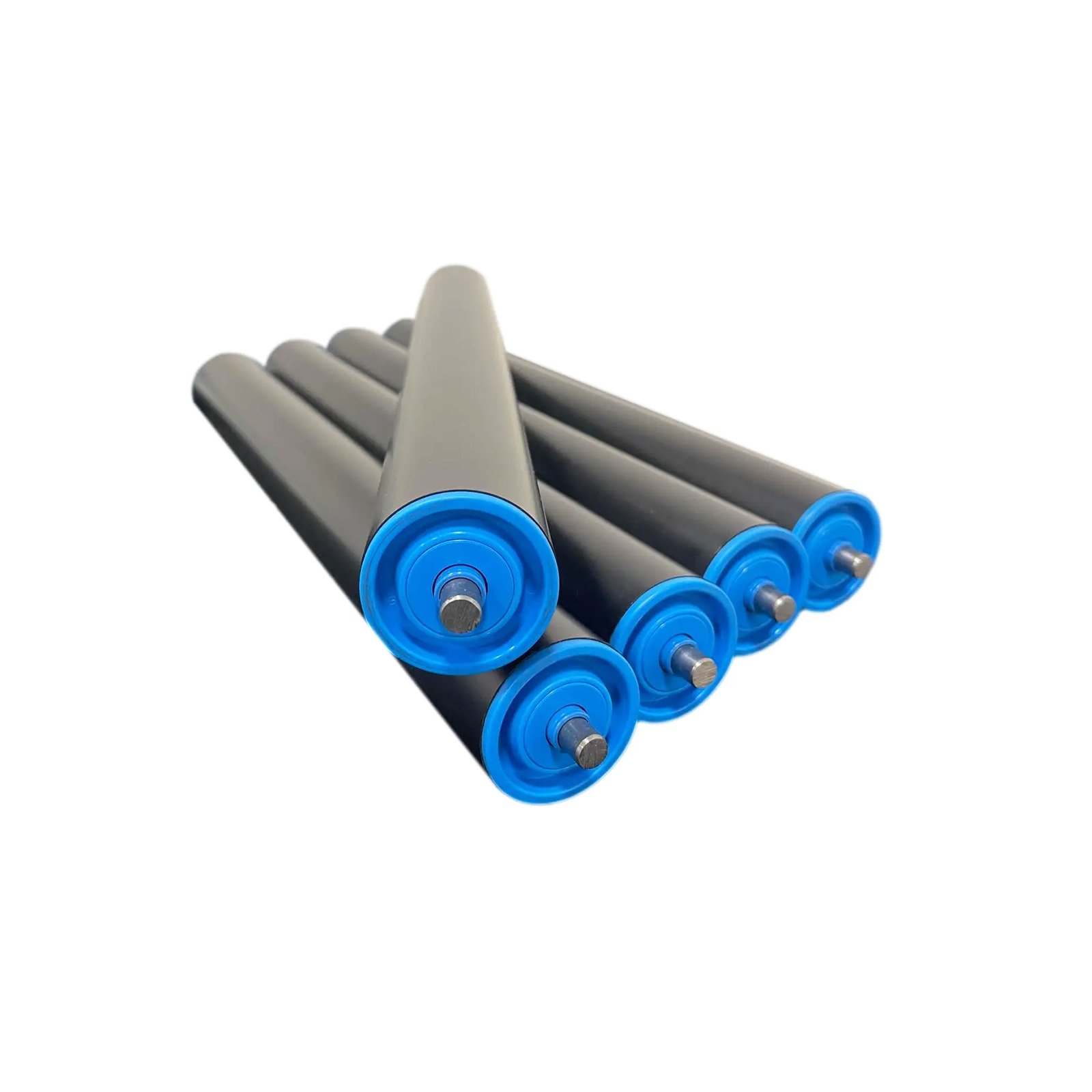

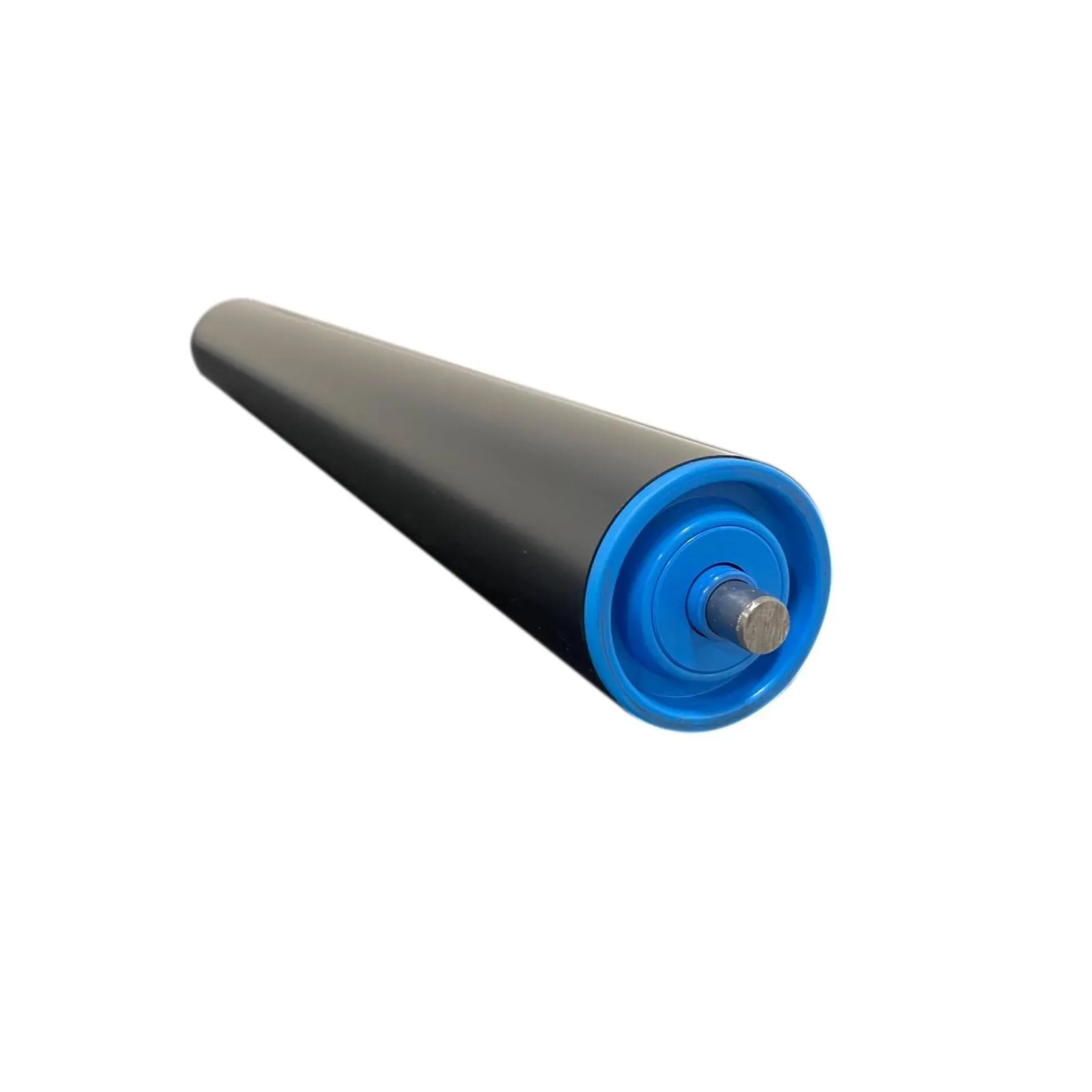

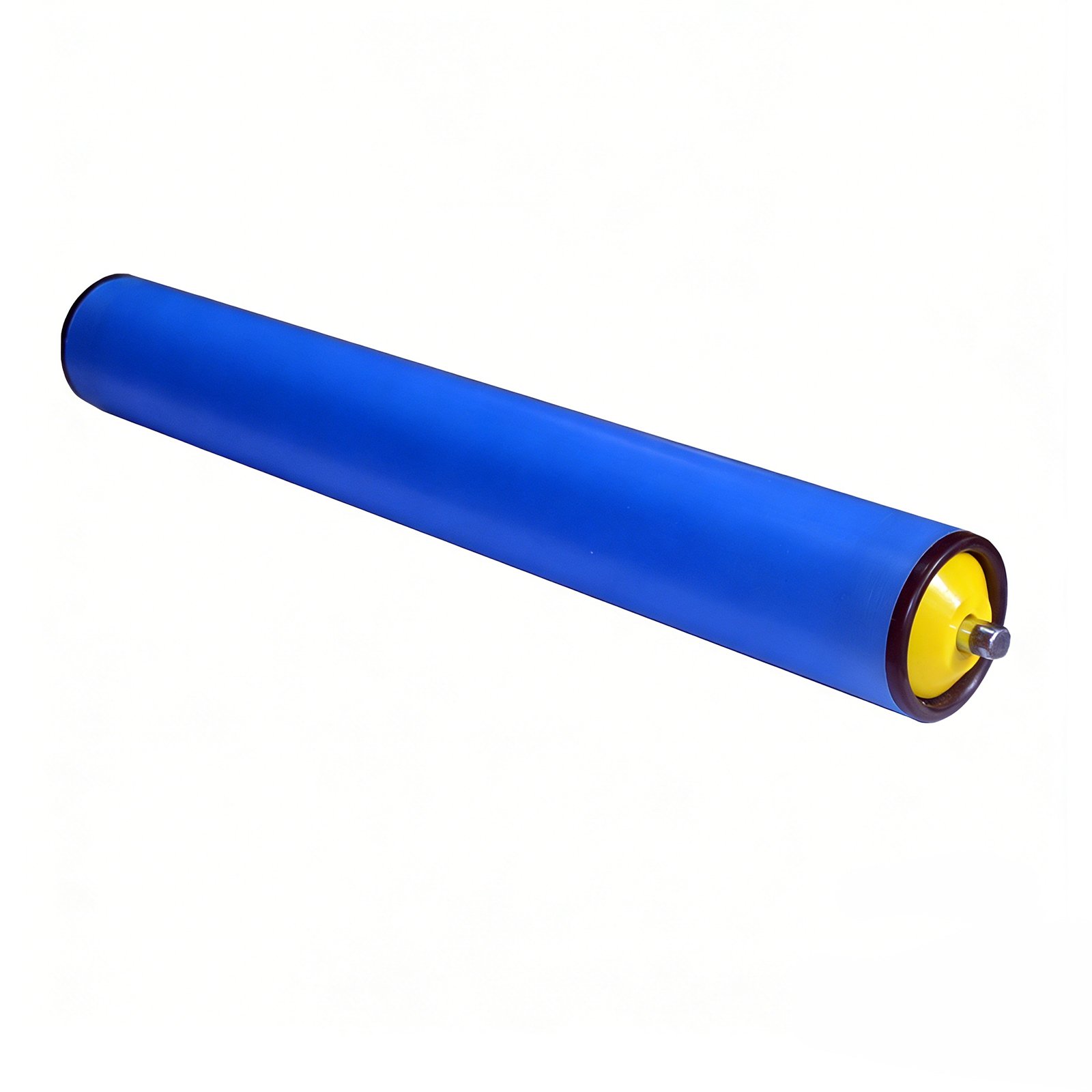

Light Duty Conveyor Roller
(+86) 13186966668 Start Live Chat
Description
General
Light Duty Conveyor Roller is an economical and practical solution designed for applications involving lightweight loads. Its primary features ensure smooth and efficient operation in suitable environments. The roller is characterized by its very light weight and smooth running performance, making it ideal for light-duty conveying tasks.
The tube is made from PVC, providing good chemical stability. It is important to note that this roller series operates at a higher noise level compared to other rollers.
The standout advantage of this product is its cost-effectiveness. It delivers reliable performance for light-load operations while maintaining a competitive price point, offering excellent value for applications where heavy-duty features are unnecessary.
Product Features
• Very light, smooth running. Suitable for light duty conveying.
• Utilizes polymer ball bearings. The inner/outer flange of the bearing is made of POM. The ball is made of stainless steel.
• PVC tube with good chemical stability.
• Higher noise levels compared with other series rollers.
• Temperature range: -5°C ~ +40°C.
• Humidity range: 30%~ 90% RH (non-condensation).
Please contact us if humidity out of this scope.
Specification
| Tube | Installation Method | Tube Dia.(D)*t | Shaft Dia.(d) | |||
| PVC | Spring Loaded | Φ20 x1.1 | Φ6 | BF=W+8 | E=W+6 | L=W+28 |
| Φ25 x1.8 | Φ8 | BF=W+8 | E=W+6 | L=W+28 | ||
| Φ30 x1.8 | Φ8 | BF=W+10 | E=W+8 | L=W+30 | ||
| Φ38 x2.0 | Φ8 | BF=W+10 | E=W+8 | L=W+30 | ||
| Φ50 x2.5 | Φ8/10/12 | BF=W+8 | E=W+6 | L=W+28 | ||
| Internal Thread | Φ50 x2.5 | Φ8/10/12 | BF=W+8 | E=W+6 | L=W+8 |
| Tube | Installation Method | Tube Dia.(D)*t | Shaft Dia.(d) | |||
| PVC | Internal Thread | Φ50 x2.5 | Φ12(M8 x1.5) | BF=W+8 | E=W+6 | L=W+8 |
