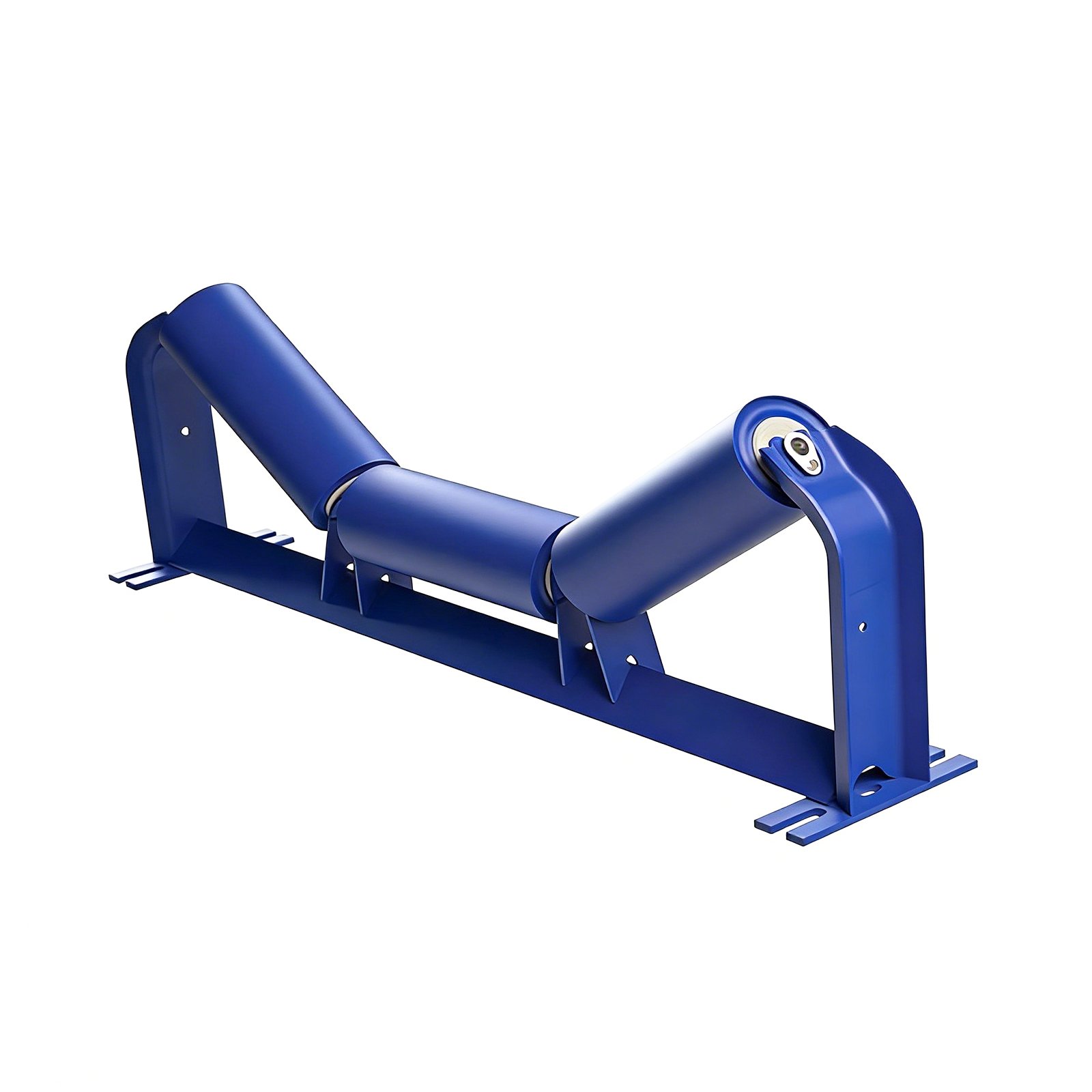

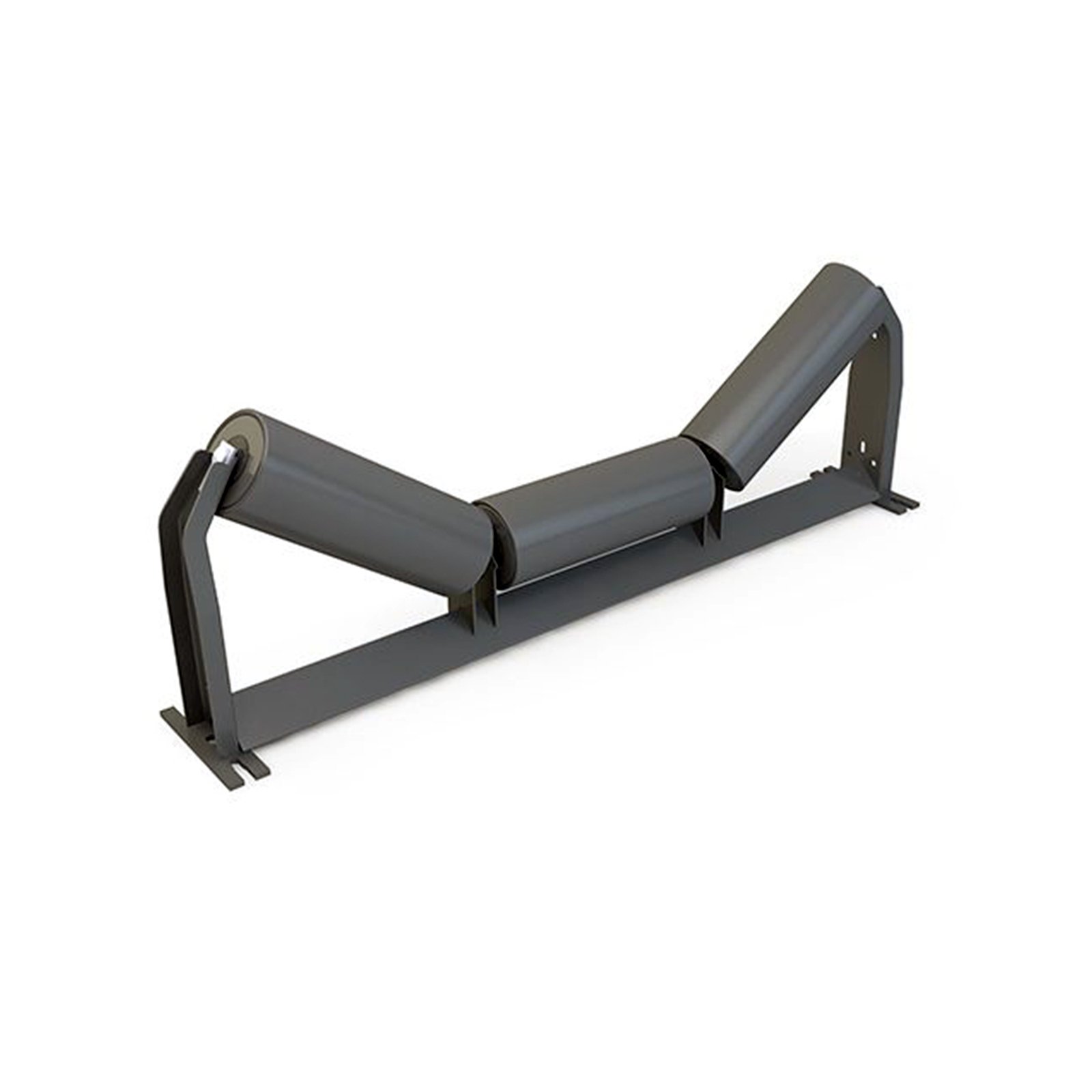

Equal troughing idlers
- Equal Troughing Idlers are designed for a long, trouble-free maintenance life
- Meet or exceed CEMA load ratings
- Equipped with three equal length sealed ball bearing rolls
- Reinforced frame design to shed material and avoid build-up
- Thick slotted footpads for solid secure base
- Minimal roll gap to avoid belt pinching
(+86) 13186966668 Start Live Chat
Description
General
Equal Troughing Idlers are designed to support the belt and transport material on the carrying side of the conveyor belt. They are manufactured to meet or exceed all CEMA load standards, combining an innovative frame design with idler rolls equipped with a proven seal system to ensure long maintenance free service in even the most demanding applications.
Application

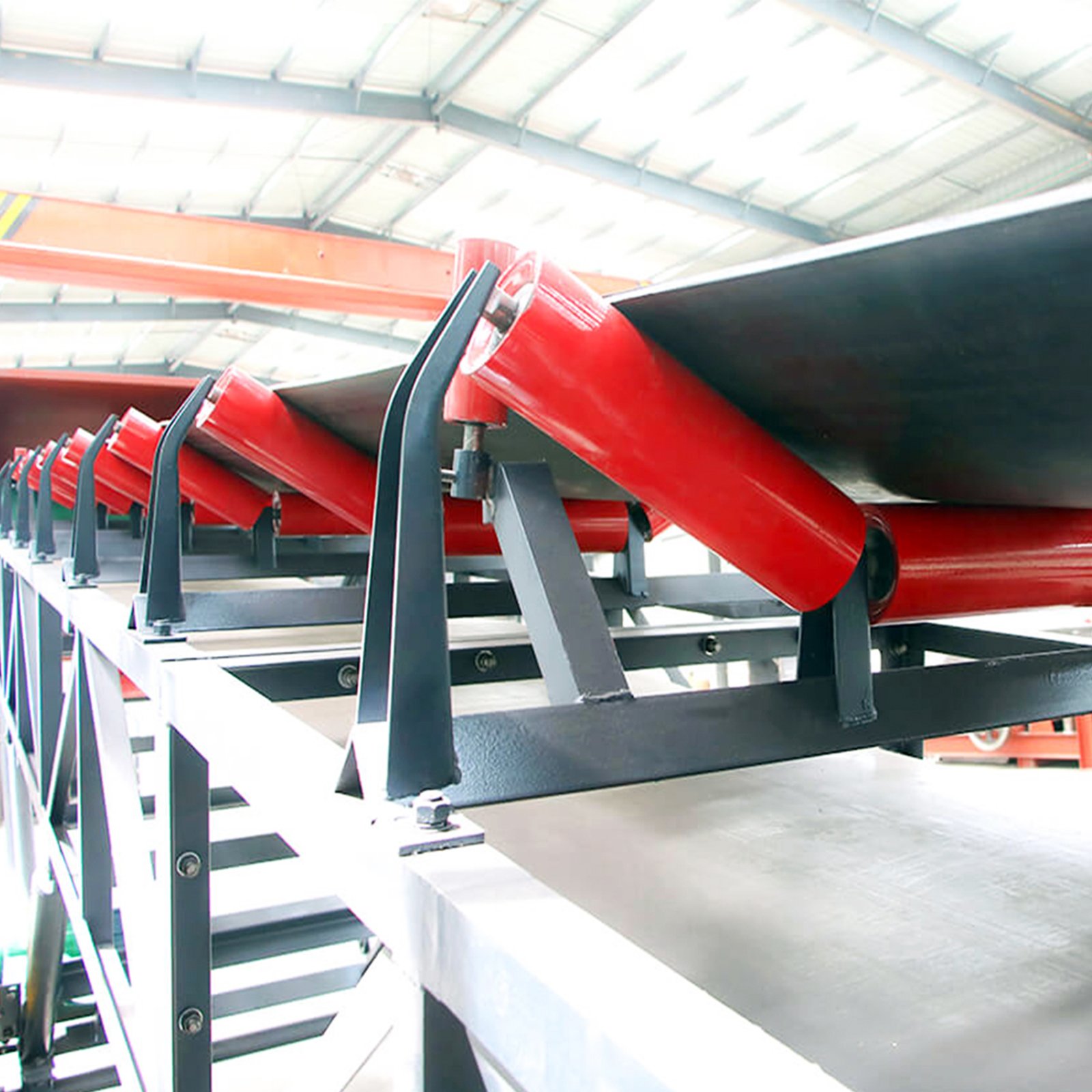

Troughing idlers are positioned on the carrying side of the conveyor belt and are responsible for supporting the bulk material being conveyed. They help create a trough shape in the conveyor belt, which is especially useful for handling materials that are prone to spillage. Extending their life expectancy can be a challenge. Our proven seal design and low maintenance rollers lead to less downtime and increased profits. The troughing angle comes in 20°, 35°, and 45°.
Specification
| Trough Idler Type | Belt Width (mm) |
| V-type Carrying Trough Idler (2 rollers) | 300 – 800 |
| Carrying Trough Idler (3 rollers) | 400 – 2200 |
| Self-aling Trough Idler (3 rollers) | 400 – 2200 |

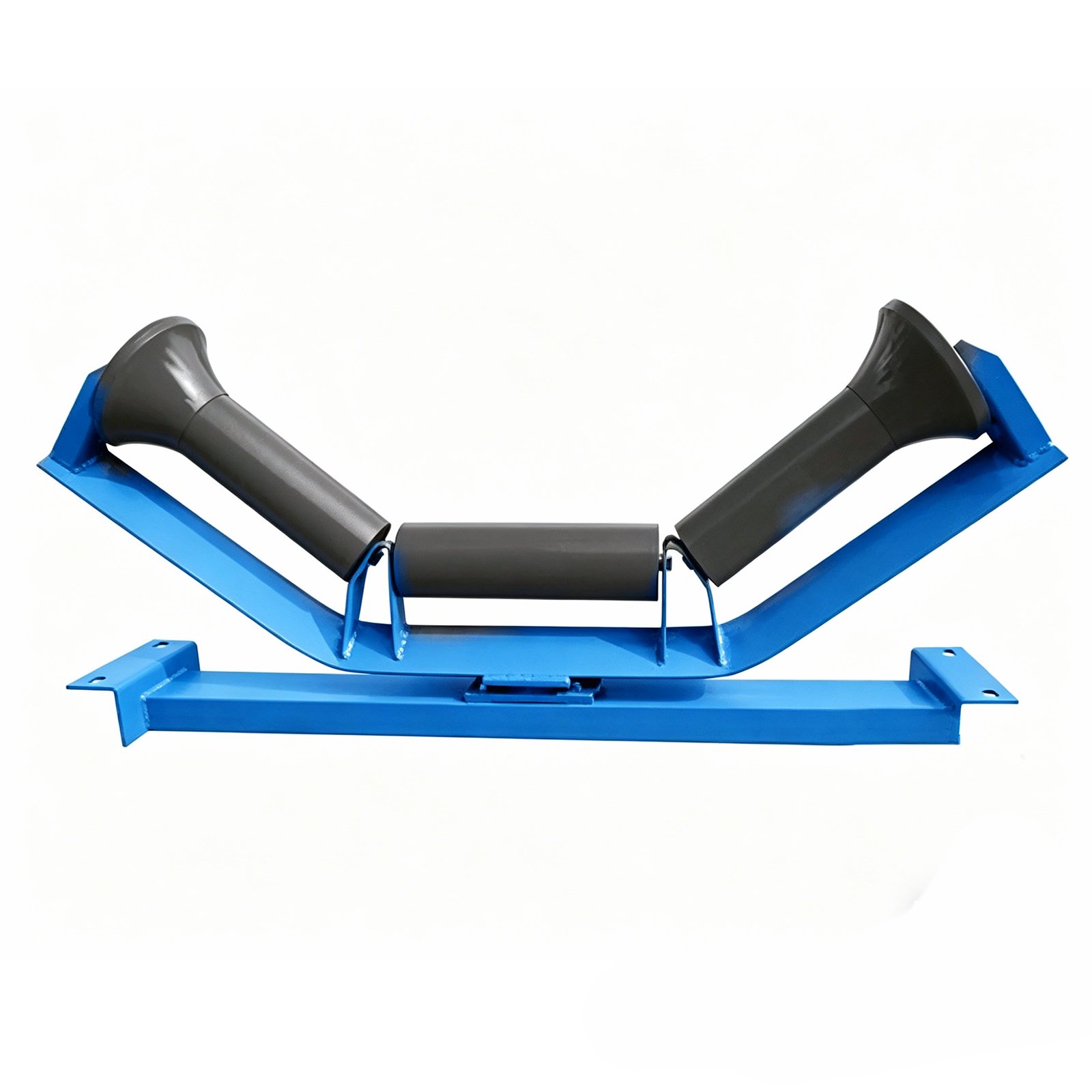

| Trough Friction Idler, Self-aling Idler | 400 – 1400 |
| Trough Tapered Idler, Self-aling Idler | 800 – 2000 |
| Standard | DIN, CEMA, JIS, AS, SANS-SABS, GOST, AFNOR etc. |
