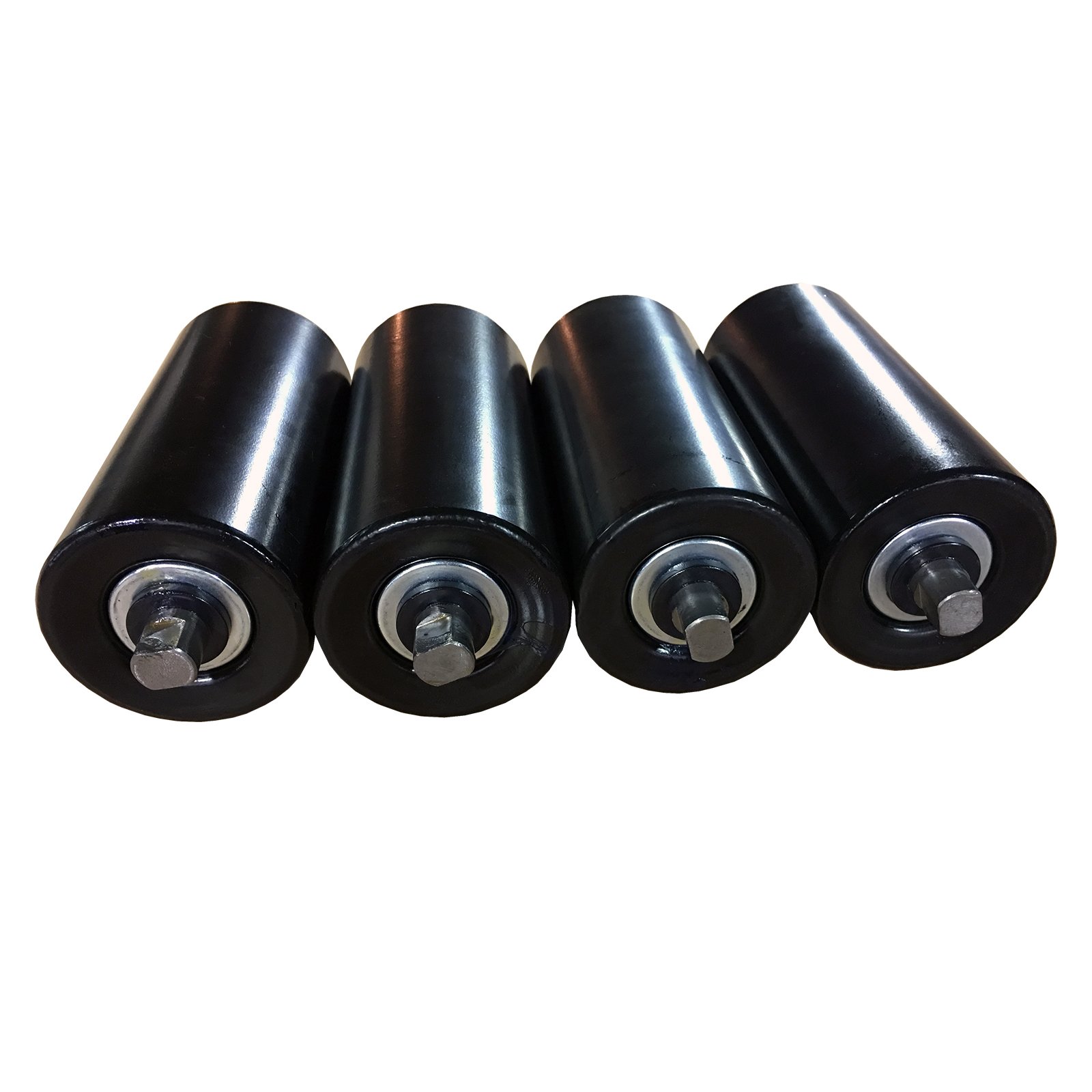

European Standard Carrier Conveyor Idler roller

Description

General

Idlers (rollers) are vital to the conveying process. They support the belt and conveyed material along its full length preventing it from stretching, sagging and eventually failing. Conveyor rollers and idlers are often required to operate in harsh environments such as dirty, dusty, high humidity, and drastically high or low temperatures. Roller idler engineering is available to design a custom idler to match your specific need. The unique patented energy saving idlers can reduce your power consumption significantly.

Standard Features

KevyIndustrial offers European Standard Carrier Conveyor Idler rollers, which based on European standards, the key characteristics of European Standard Carrier Conveyor Idler rollers are:
•Dimensional Accuracy & Interchangeability: Manufactured to precise tolerances as per EN and ISO standards, ensuring easy replacement and compatibility across systems from different manufacturers.

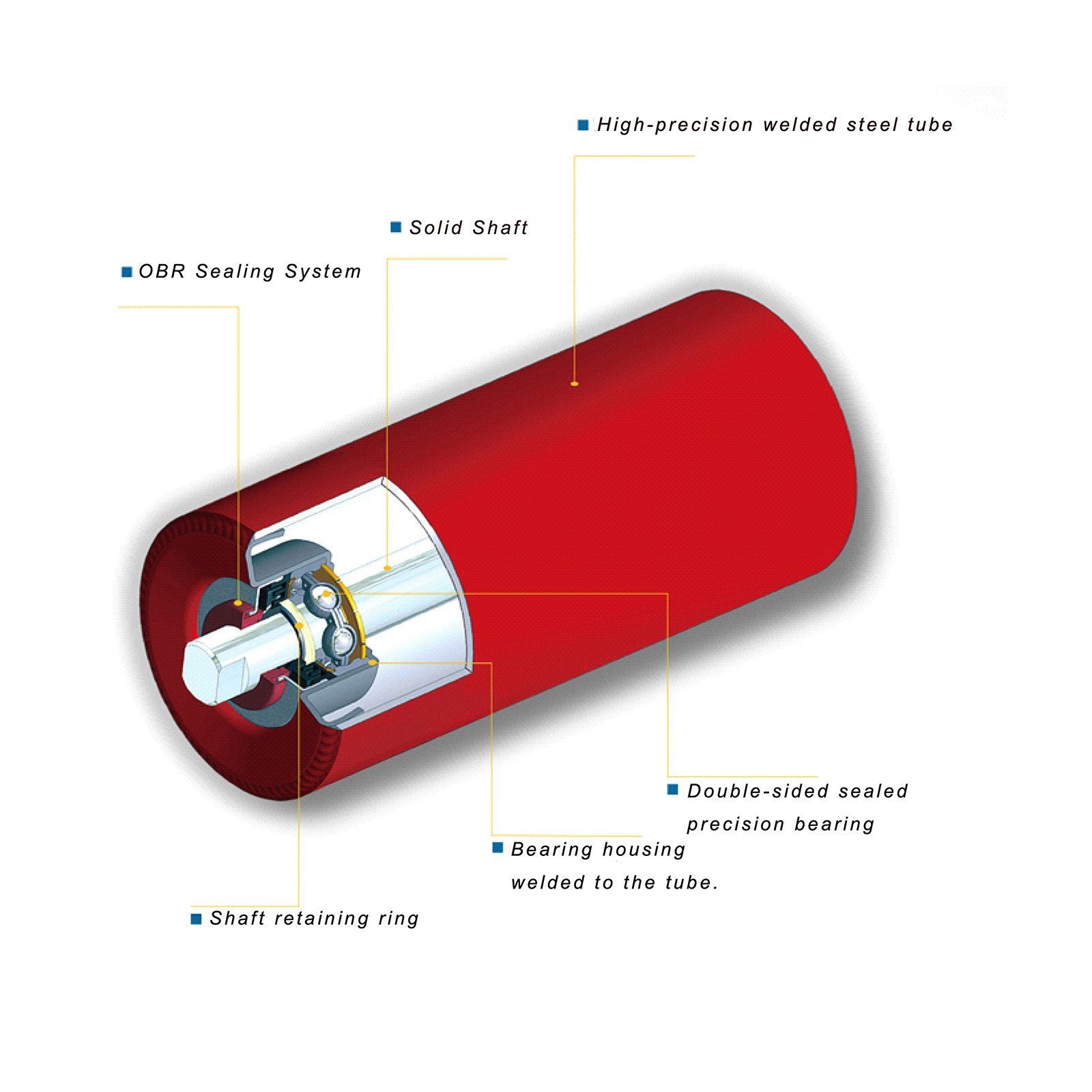

•Robust Construction & Materials: Typically feature heavy-duty steel tubes (often specified grade), precision-rolled for consistency. End caps are welded or crimped securely to prevent ingress.
•Advanced Sealing Systems: Utilize multi-labyrinth seals (often combined with grease-purged chambers) to effectively exclude dust, dirt, and water. This is critical for the harsh environments mentioned and ensures long bearing life. Common configurations include triple-labyrinth seals with contact lips.
•High-Quality Bearing Units: Equipped with deep-groove ball bearings (usually C3 clearance for temperature variation) that are pre-lubricated with high-quality, temperature-stable grease. Bearings are often sized according to dynamic load ratings specified in the standards.
•Performance & Testing Compliance: Designed to meet strict performance criteria for:
•Rotational Resistance: Low starting and running torque to minimize power consumption (aligning with energy-saving needs).
•Radial Run-Out: Minimal deviation for smooth belt travel and reduced vibration.
•Impact Resistance: Ability to withstand the load of material falling onto the belt.
•Durability: Tested for operational life under specified load conditions.
•Corrosion Protection: Shafts are commonly made from cold-drawn steel, often with zinc or other anti-corrosion coatings. Paint systems are robust for environmental protection.
•Safety & Certification: Designed and manufactured to comply with the EU Machinery Directive and carry the CE marking . This includes considerations for structural integrity and guarding interfaces.
•Load Ratings Standardization: Load capacities are classified into standard series as per ISO 1537 (adopted as EN ISO 1537 ), allowing for clear selection based on belt width, speed, and material load.
•Focus on Energy Efficiency: The design philosophy inherently aims to reduce rotational resistance. Advanced European designs often feature “Optimized” idlers with polymer/composite seals and precision components to significantly lower rolling friction, directly reducing conveyor power consumption.
European Standard idlers prioritize precision, durability in harsh conditions through superior sealing, standardized performance, safety compliance, and designs that contribute to lower operational

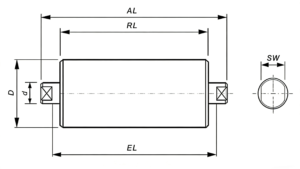

Specification
