CY-16B 25 B 30 B 38 B Light Load Ball Transfer Units

Description

General

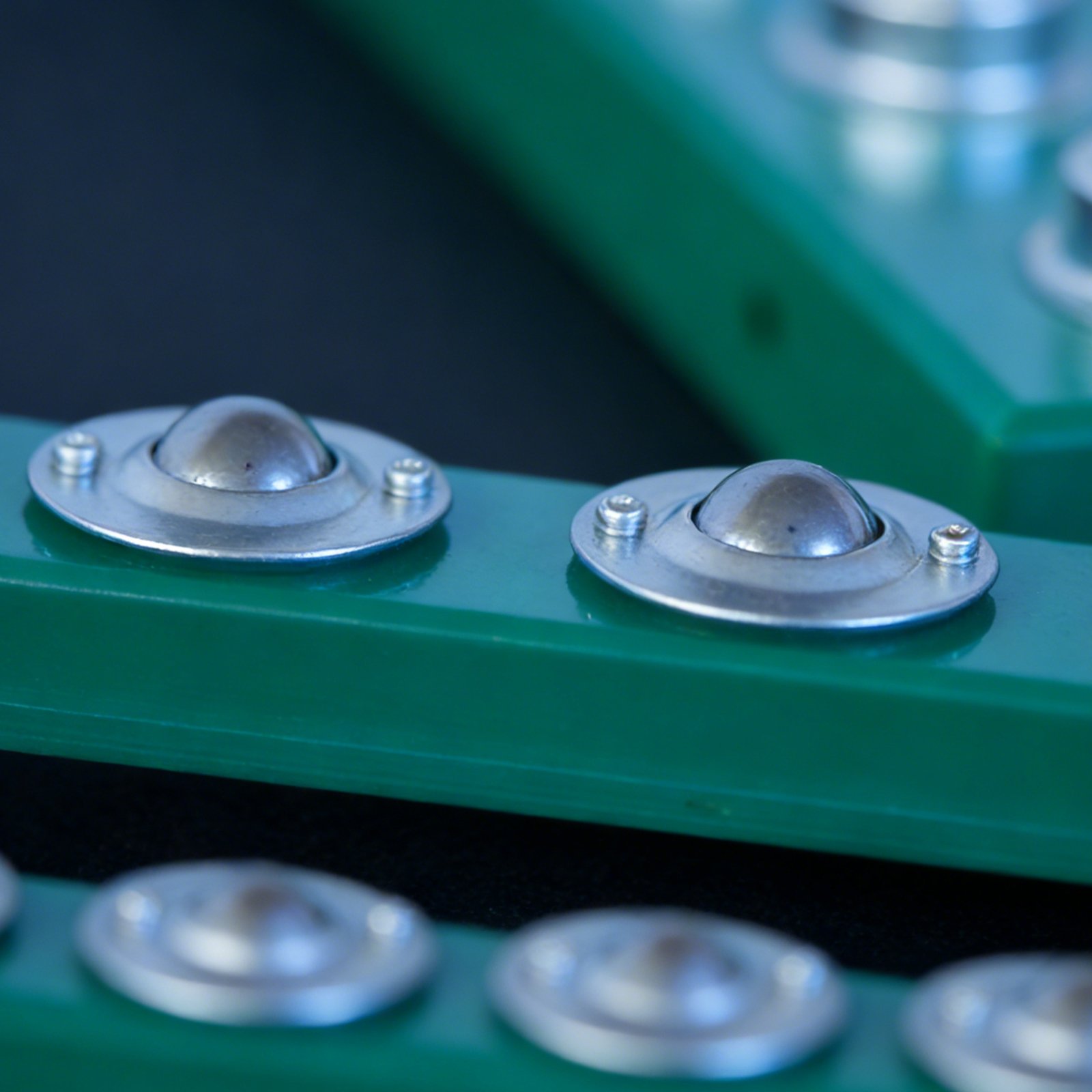

Ball Transfer Units are type of bearings designed to promote smooth and easy movement of objects in different directions. They are often found in conveyor systems, assembly lines, material processing equipment, industrial machinery, retail displays, and furniture

Model: CY-16B
Capacity(Max.): 15kg/33.07lb
Ball Diameter: 5/8-inch； Dimension: 45 x 19mm/1.8-inch x 0.75-inch(Max.D*H)
Mount Hole Dia.: 4mm/0.16-inch； Mount Hole Distance: 30mm/1.2-inch
CAPACITY: With a load bearing capacity of 33.07 lbs. Weight: 260g

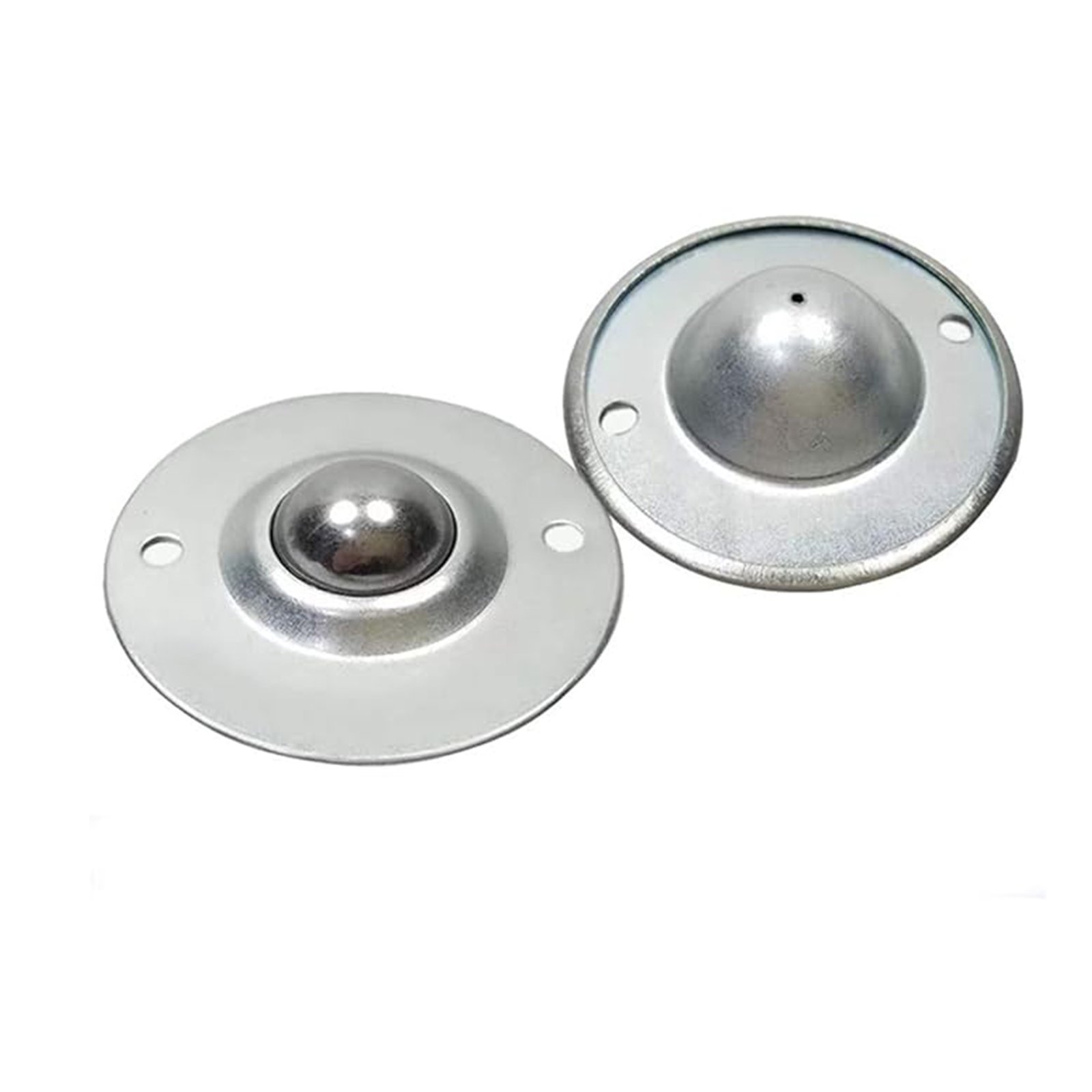

Model: CY-25B
Capacity(Max.): 15kg/33.07lb
Ball Diameter: 5/8-inch； Dimension: 45 x 19mm/1.8-inch x 0.75-inch(Max.D*H)
Mount Hole Dia.: 4mm/0.16-inch； Mount Hole Distance: 30mm/1.2-inch
CAPACITY: With a load bearing capacity of 33.07 lbs. Weight: 260g

Model: CY-30B
Capacity(Max.): 15kg/33.07lb
Ball Diameter: 5/8-inch； Dimension: 45 x 19mm/1.8-inch x 0.75-inch(Max.D*H)
Mount Hole Dia.: 4mm/0.16-inch； Mount Hole Distance: 30mm/1.2-inch
CAPACITY: With a load bearing capacity of 33.07 lbs. Weight: 260g

Model: CY-38B
Capacity(Max.): 15kg/33.07lb
Ball Diameter: 5/8-inch； Dimension: 45 x 19mm/1.8-inch x 0.75-inch(Max.D*H)
Mount Hole Dia.: 4mm/0.16-inch； Mount Hole Distance: 30mm/1.2-inch
CAPACITY: With a load bearing capacity of 33.07 lbs. Weight: 260g
