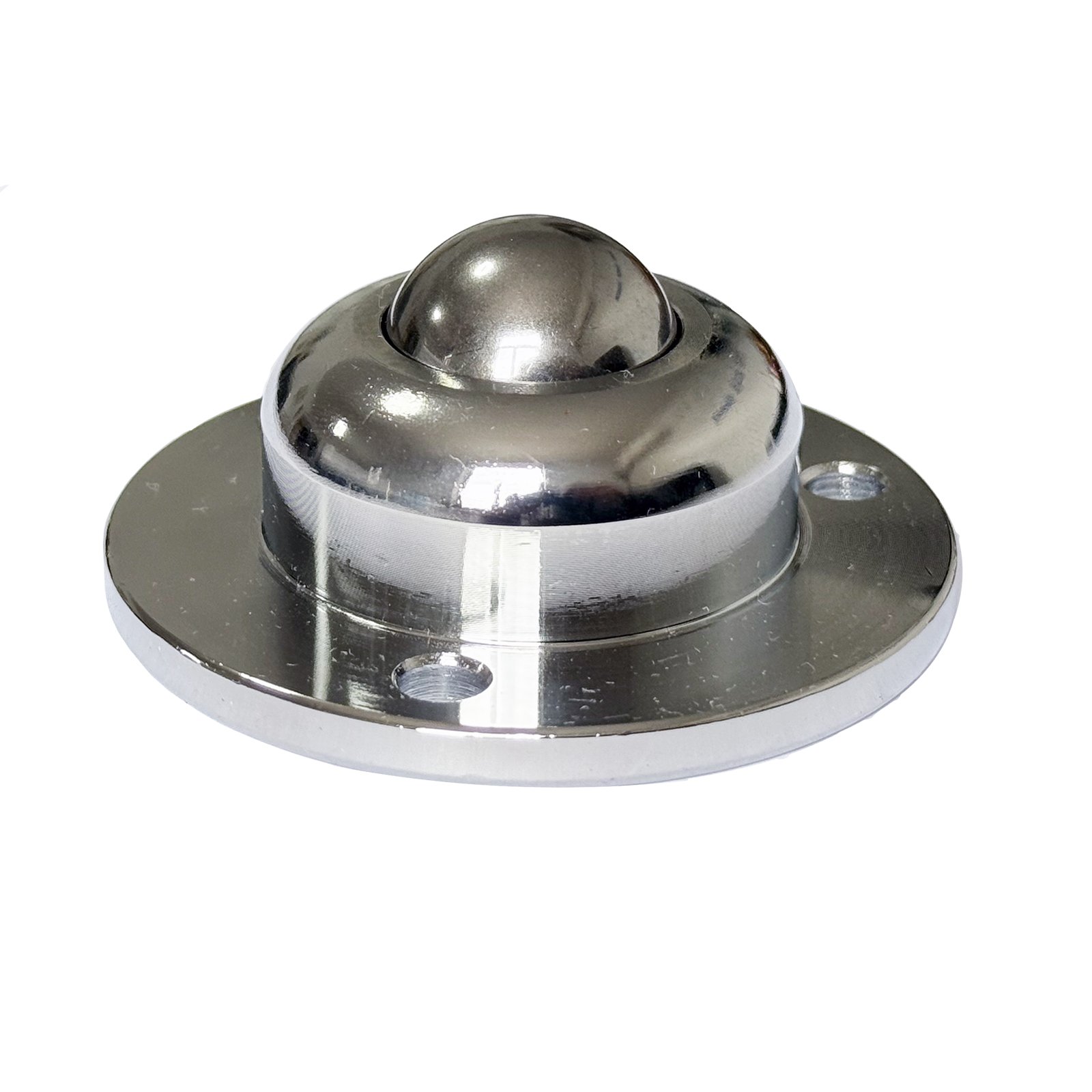

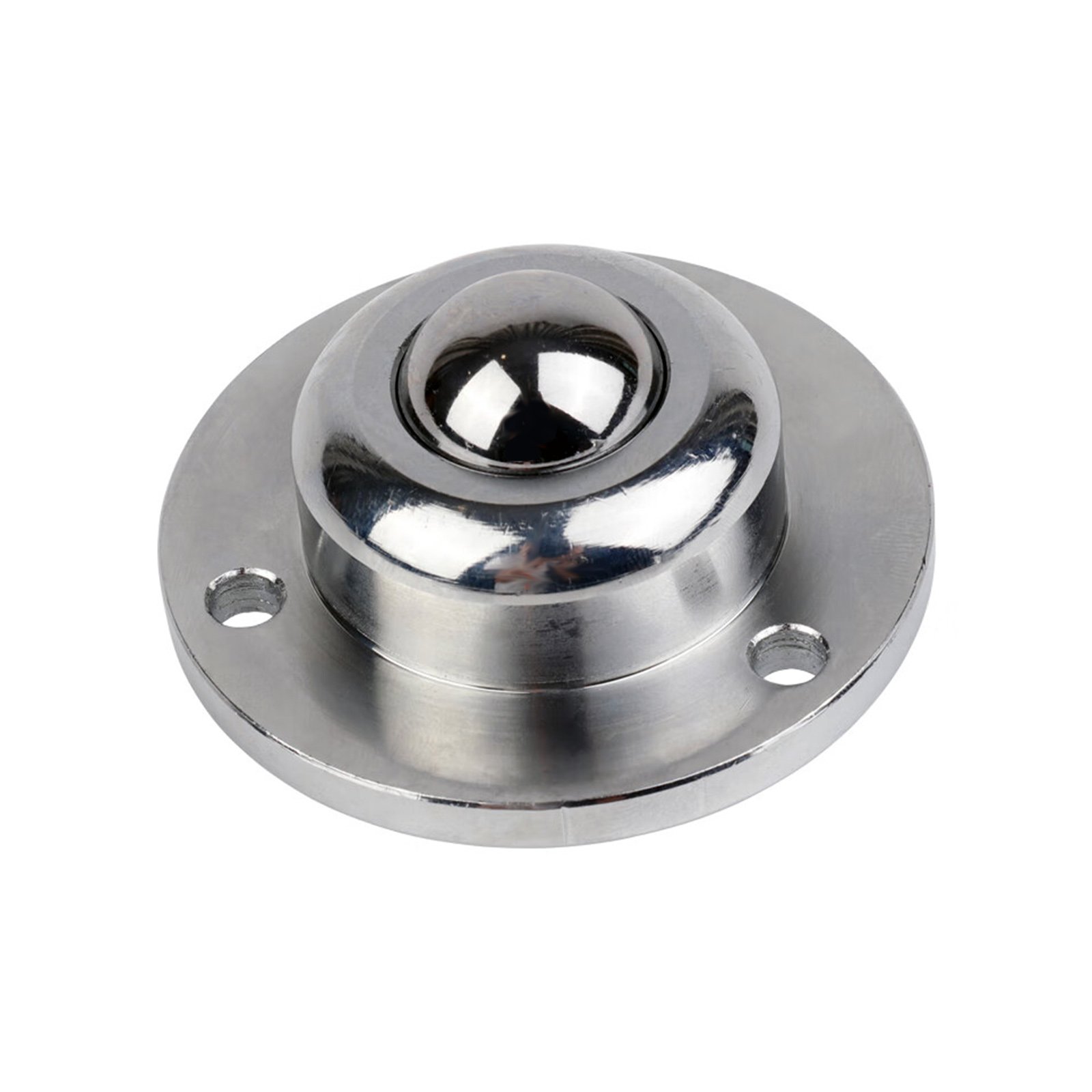

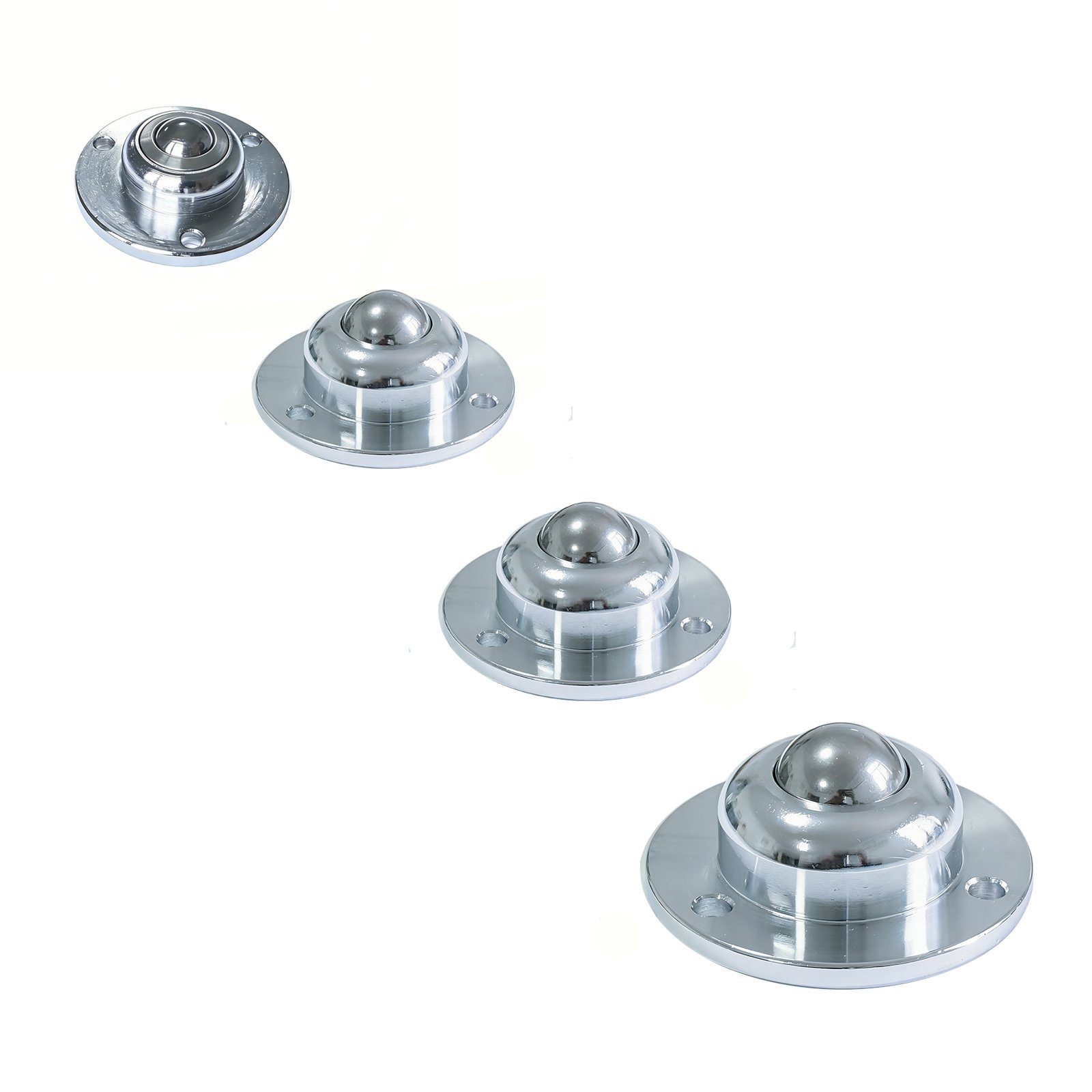

IA 15 IA19 IA25 IA38 heavy duty flange mounted ball transfer unit
Have a Question? Ask a Specialist
(+86) 13186966668 Start Live Chat
Description
General
Ball transfer units are omni-directional load-bearing spherical balls mounted inside a restraining fixture. They are used in material handling system, semi or full automatic production system, storage system, airports for luggage delivery, or in industry as part of manufacturing systems.
The materials of them can be in carbon steel, stainless steel, harden steel, nylon or plastic or combined material to fit for different applications.
Specifications:
- 130-150/kg per unit capacity
- Deep Grove
- Ball Size: 25 mm,38 mm
- Ball Material: carbon steel, S.S. bearing steel, nylon carbon steel, S.S. bearing steel
 |
 |
 |
|||||

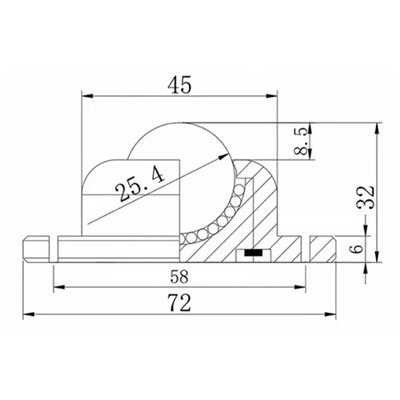

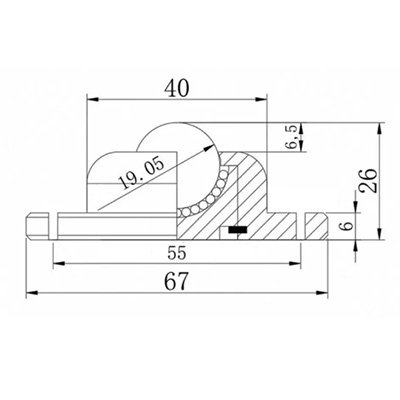

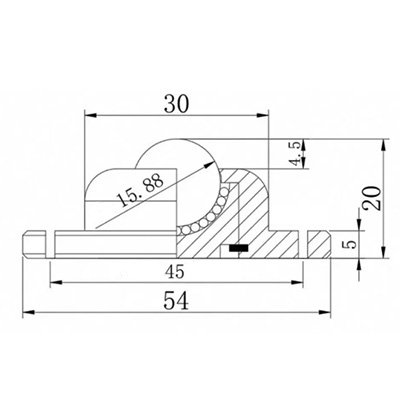

| Model：IA-15 | WT：180g | Model：IA-19 | WT：220g | Model：IA-25 | WT：330g | ||
| Max Load：50Kg | Ball Disameter：15mm | Max Load：100Kg | Ball Disameter：19mm | Max Load：200Kg | Ball Disameter：25mm | ||
 |
 |
 |
|||||

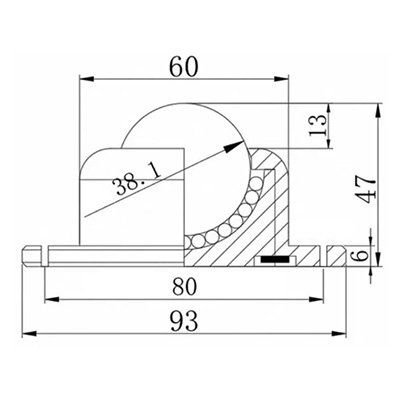

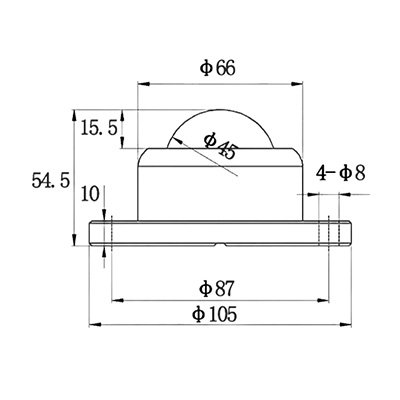

| Model：IA-38 | WT：860g | Model：IA-45 | WT：1.6Kg | Model：IA-50 | WT：2.9Kg | ||
| Max Load：300Kg | Ball Disameter：38mm | Max Load：450Kg | Ball Disameter：45mm | Max Load：600Kg | Ball Disameter：50mm | ||
