Electric Lift Table With Manual Rotator
•360 degree rotating closed platform.
•Easy to be moved by the forklift truck.
•Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled speed.
•Heavy duty cylinders and check valve to stop the lift table lowering in case of hose burst.
•110/220Volt with Hand Control.
•Improves efficiency, reduces worker strain.
(+86) 13186966668 Start Live Chat
Description
General

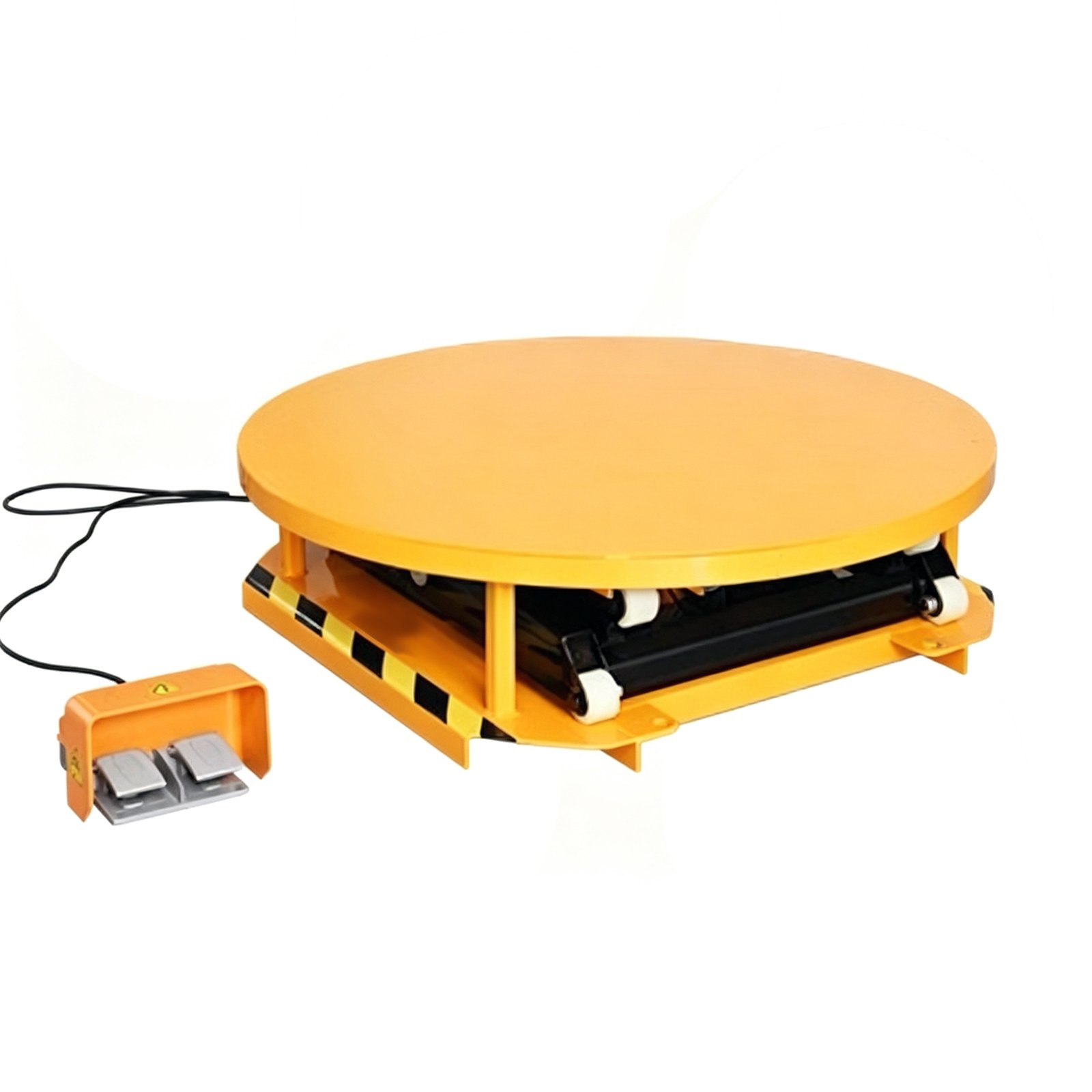

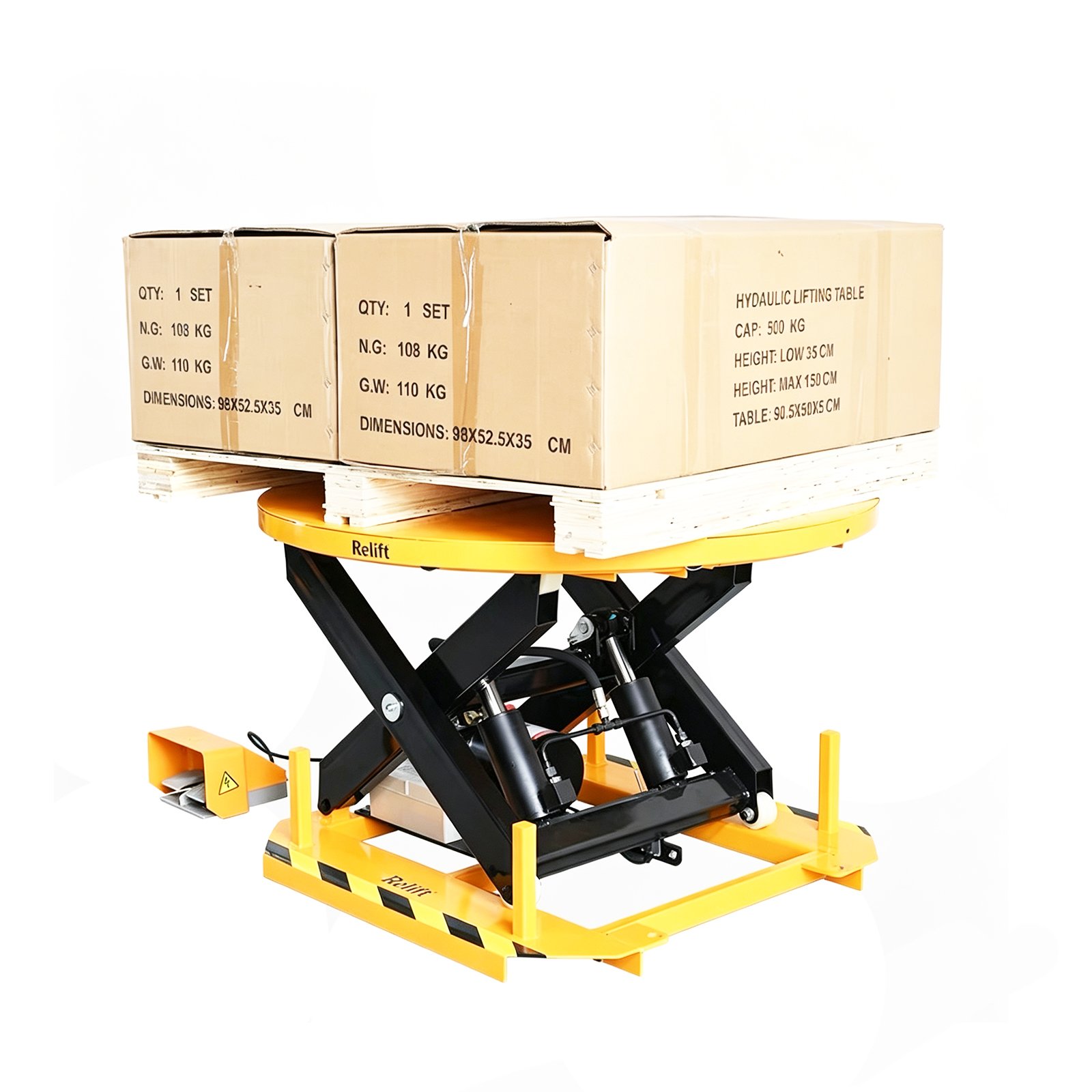

This electric hydraulic scissor lift table combines a 360° manual rotating platform with a heavy-duty yellow steel frame for ergonomic workpiece positioning. The safety foot pedal controller enables hands-free raising and lowering, while the forklift-compatible base allows easy transport across industrial facilities. Ideal for assembly and maintenance tasks, it reduces operator strain and boosts productivity by providing precise height and angle adjustment.
Specification
|
Capacity
(lbs.) |
4,400
|
|---|---|
|
Lowered
Height |
11.8″
|
|
Raised
Height |
28″
|
|
Platform Diameter
|
43.7″
|
|
Power Back
|
110 Volt, AC 1.5KW
|
|
Net Weight (lbs.)
|
385
|
