Current Collector

Description

General

Current Collector is the key part in mobile power supply system. It transmits power when sliding contact with the insulated conductor system. It includes two parts, the tension device of mechanical structure and the carbon brushes. The tension device makes sure that the contact stability between the brushes and the conductor rail. As for the carbon brush used to collecting current, it seems much more important. Its conductivity properties and the material quality will directly affect the the whole system running.

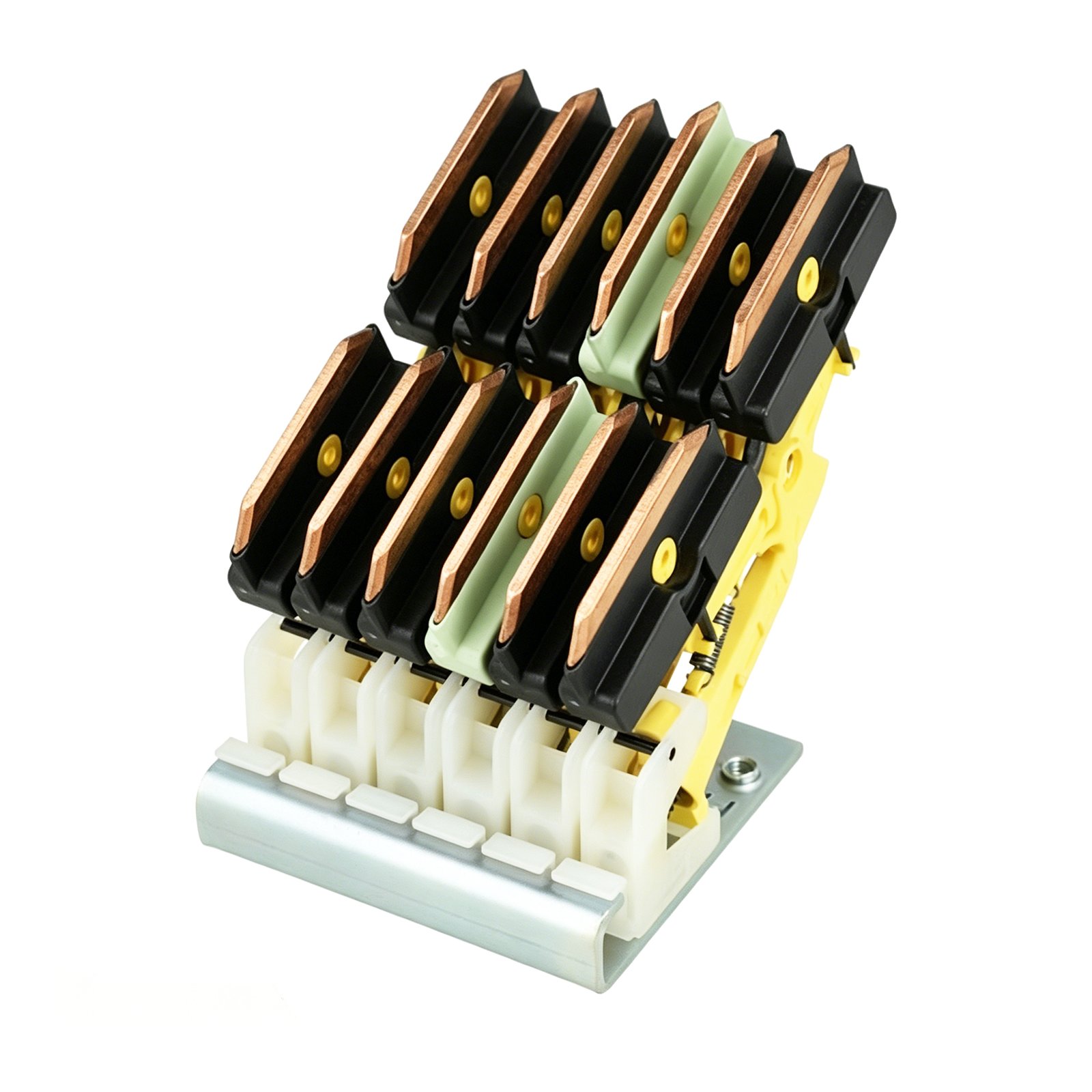

Product Overview-Double-Head Current Collector (Twin Carbon Brush Collector)

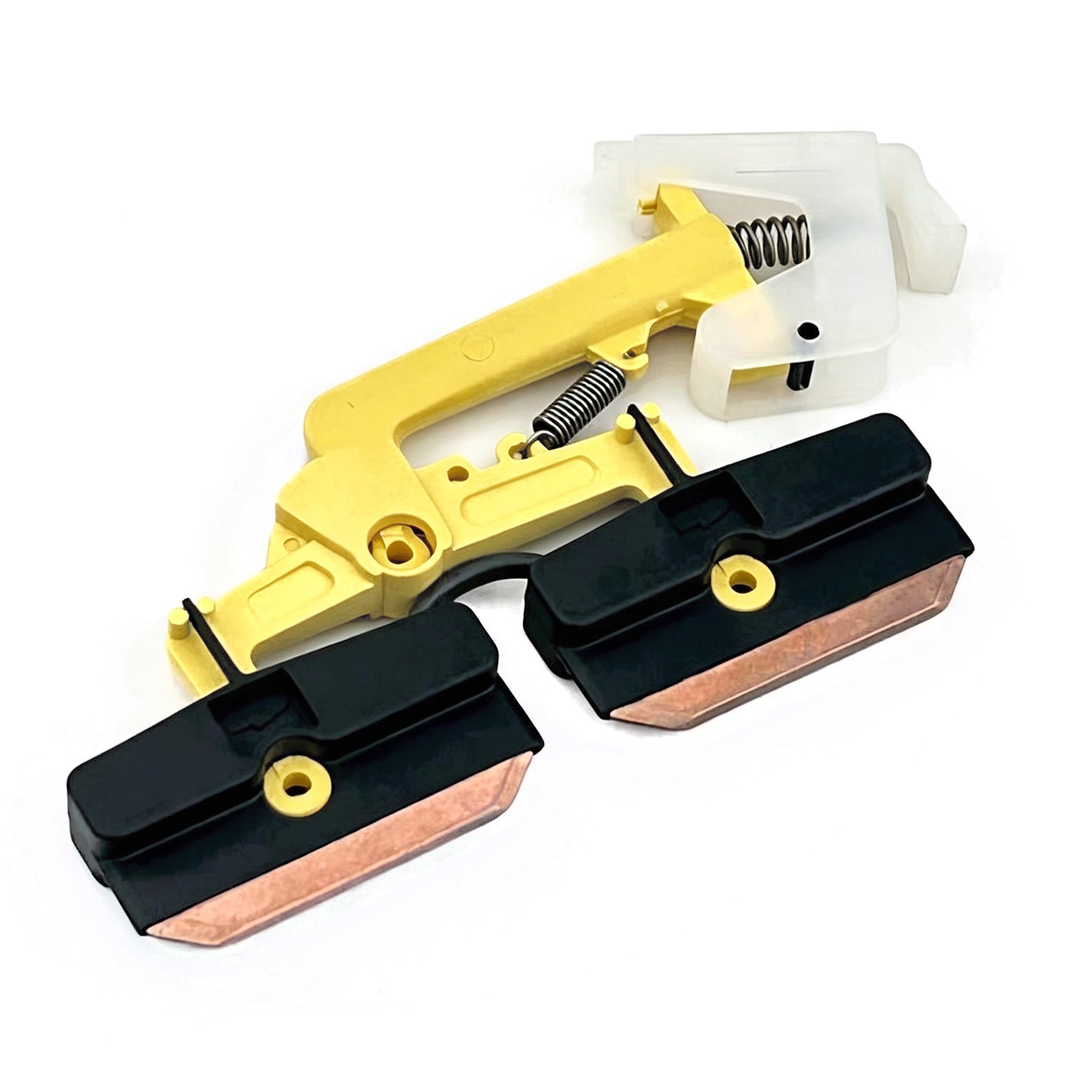

The  double-head current collector, also referred to as a twin carbon brush collector. It is distinctly characterized by two parallel conductive carbon brushes mounted on a single floating bracket arm, setting it apart from single-head variants.

Key Advantages

· Higher current capacity – Dual brushes share the load, supporting greater continuous operating currents without thermal overload.
· Enhanced power stability – Redundant contact surfaces drastically reduce momentary power interruptions and sparking during jolts or rail offsets.
· Extended service life – Evenly distributed current minimizes brush wear rates, lowering maintenance frequency and downtime.
· Superior adaptability – Ideal for long-travel, high-cycle applications where uninterrupted power is mission-critical.

Applications

· Automated production lines (EMS overhead trolleys, automotive painting & welding assembly lines)
· Intelligent logistics systems (AS/RS stackers, rail-guided carts, AGVs)
· Light-duty lifting equipment (miniature overhead cranes, electric hoists, gantry systems)
· Other track-based machinery (parking systems, theme park ride cars, packaging conveyors, port transfer carriages)

The double-head current collector represents an upgraded, heavy-duty power pickup solution versus conventional single-head types. It is the preferred receiving component for industrial mobile equipment that demands consistent, long-term, high-current operation—effectively resolving common failure modes such as intermittent power loss and brush burn-out.
