Ball Transfer Unit CY-38A
Have a Question? Ask a Specialist
(+86) 13186966668 Start Live Chat
Description

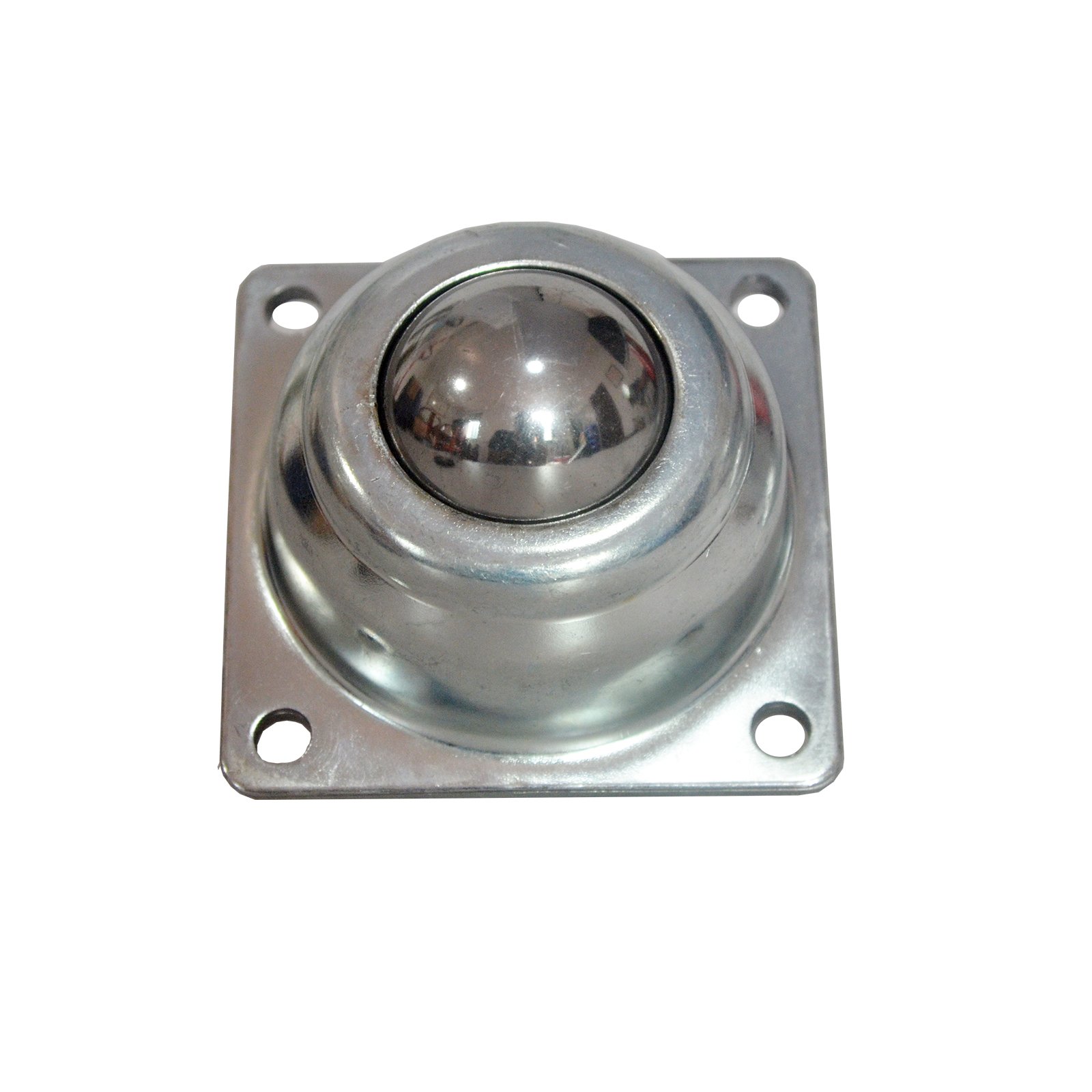

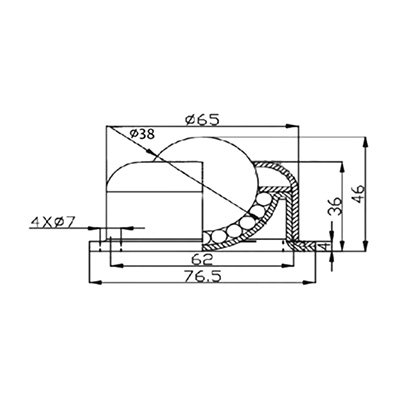

1.Description: Ball Transfer Unit CY-38A (flange mount pressed ball transfer unit)
Model No.CY-38A
2.Specifications for Ball Transfer Unit CY-38A:
1)Ball Material: Steel, Stainless Steel,Nylon;
2)Case Material:Steel&Galvanzed, Steel&Chrome plating,Stainless Steel;
3)Load Capacity:60kgs;
4)Max Load Capacity:80kgs;
5)Weight:460g.
 |
 |
 |
|||||

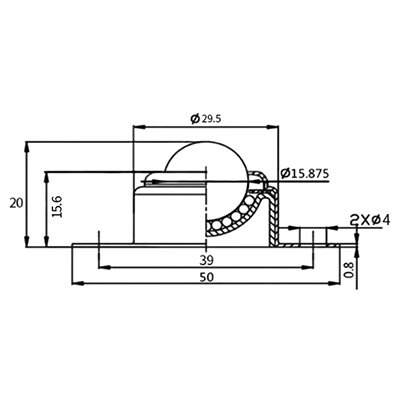

| Model：CY-12A | WT：30g | Model：CY-15A | WT：42g | Model：CY-19A | WT：58g | ||
| Max Load：10Kg | Ball Disameter：12mm | Max Load：25Kg | Ball Disameter：15mm | Max Load：30Kg | Ball Disameter：25mm | ||
 |
 |
 |
|||||

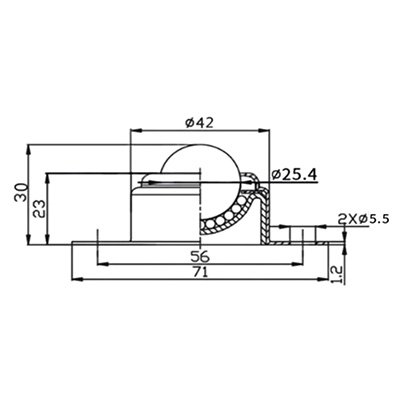

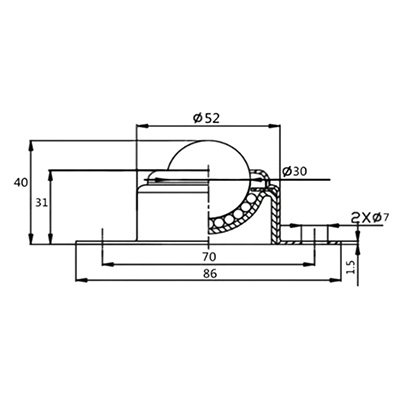

| Model：CY-25A | WT：130g | Model：CY-30A | WT：240g | Model：CY-38A | WT：460g | ||
| Max Load：40Kg | Ball Disameter：25mm | Max Load：50Kg | Ball Disameter：30mm | Max Load：80Kg | Ball Disameter：38mm | ||
